Hyundai Long Block Engine Replacement
, G4KC Long Block Engine Replacement
, Long Lasting Car Engine Replacement
G4KC Long Block Engine Replacement Long Lasting High Stability For Hyundai Sonata

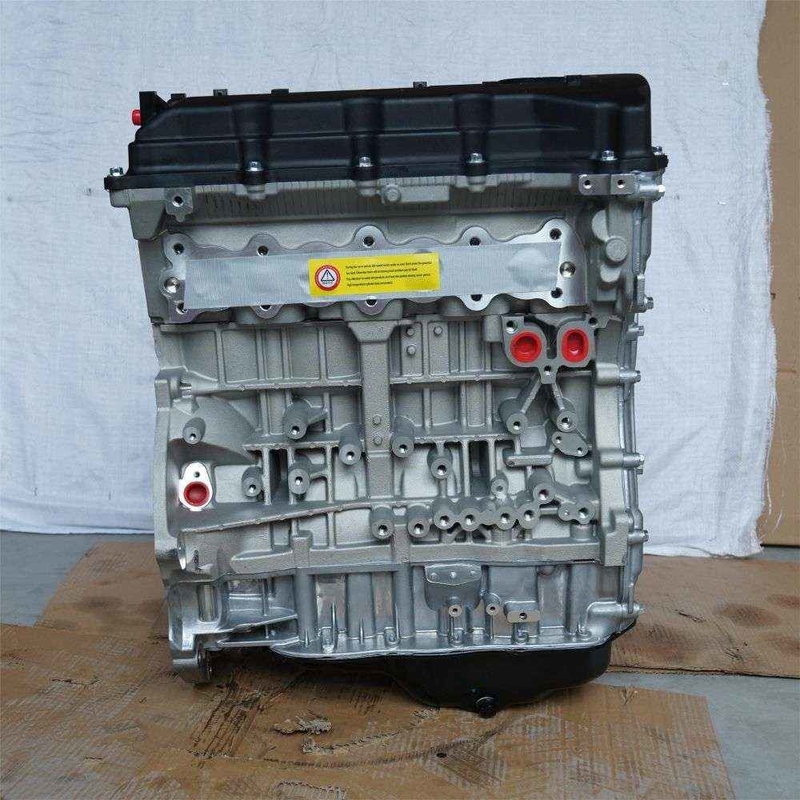

Hyundai Kia 2.4L 16V G4KC Long Block Motor Engine for Hyundai Sonata and Kia Magentis sedans
The 2.4-liter Hyundai G4KC gasoline engine was produced by the company from 2004 to 2010 and was installed on the Sonata and Magentis sedans, as well as the American version of the Carens compact van. Such a unit differs from its 2.0-liter counterpart in the presence of a block of balancing shafts.
In 2004, as part of the Global Engine Alliance, a series of engines of a single design was created: they have an aluminum cylinder block with cast-iron liners and an open cooling jacket, an aluminum 16-valve head not equipped with hydraulic lifters, a timing chain drive and a proprietary CVVT type variable valve timing system on intake camshaft. The 2.4 liter engine was called Hyundai-Kia G4KC, Mitsubishi 4B12 or Chrysler ED3.
The main difference between the 2.4-liter power unit and the 2.0-liter counterpart in the Theta I series was the presence of balance shafts, which are here combined into a single unit with an oil pump.
Theta 2.4L family: G4KC, G4KE, G4KG, G4KJ, G4KK.
Engine Specifications:
| Displacement, cc |
2359 |
| Fuel system |
distributed injection |
| Power output, hp |
160 – 165 |
| Torque output, Nm |
219 – 226 |
| Cylinder block |
aluminum R4 |
| Block head |
aluminum 16v |
| Cylinder bore, mm |
88 |
| Piston stroke, mm |
97 |
| Compression ratio |
10.5 |
| Hydraulic lifters |
no |
| Timing drive |
chain |
| Phase regulator |
yes |
| Turbocharging |
no |
| Recommended engine oil |
5W-30, 5W-40 |
| Engine oil capacity, liter |
5.3 |
| Fuel type |
petrol |
| Euro standards |
EURO 3/4 |
Fuel consumption, L/100 km (for Hyundai Sonata 2006)
— city
— highway
— combined |
12.3
7.0
8.9 |
| Engine lifespan, km |
~350 000 |
Product Features:
| Part Name: |
Long block engine |
| Engine: |
G4KC |
| Material: |
Cast Iron + Aluminum Alloy |
| Application: |
For Hyundai Sonata and Kia Magentis sedans |
| MOQ: |
1 pc |
| Condition: |
New |
| Purpose: |
for replace/repair |
| Warranty: |
12 Months |
| Packing: |
Wooden Box Package |
| Advantages: |
One Stop Shopping Center For Engine Parts |
| Payment: |
T/T,L/C,Western Union; |
| Delivery: |
3-15 days; |
|
Application:
- Hyundai Grandeur 4 (TG) in 2005 – 2009;
- Hyundai Sonata 5 (NF) in 2004 – 2008;
- Kia Carens 3 (UN) in 2006 – 2010;
- Kia Magentis 2 (MG) in 2005 – 2008.
Factory:
Transportation:
FAQ:
Q1: Can you produce per the samples?
A: Yes, we can produce as per your samples or technical drawings. We have very professional technical team , We can build the molds and fixtures.
Q2: What is your terms of payment?
A: For stock items , we recommend full payment for fast shipping. If the items need to be produced , T/T 30% as deposit, and rest before delivery.
We'll show you the photos of the products and packages for checking before you pay the balance.
Q3: What is your package?
A: Depends on items , for light heavy goods, We usually pack our goods in neutral brown cartons , if heavy goods or big quantity ,we pack it by pallet or wooden box. Also we can customized package for your band as per your requirements.
Q4: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q5: What is your delivery time?
A: In general, if we have stock ,the goods can be delivered 1-3 days after your payment. If no stock, the specific delivery time will be depended on your order quantity.
Q6: Can you accept sample order?
A: Yes sure. We can supply the sample if we have the parts in stock.
Q7: Do you test all your items before delivery?
A: Yes, we have 100% test before delivery,we have strictly quality control policy.
Q8: Which shipment you can supply?
A: By sea, by air ,by train or by express (DHL, FEDEX ,TNT,UPS,EMS etc.)
