Highlight:
Long Block Hyundai G4FA Engine
, i20 Hyundai G4FA Engine
, Stable Operation 4 Cylinder Car Engine

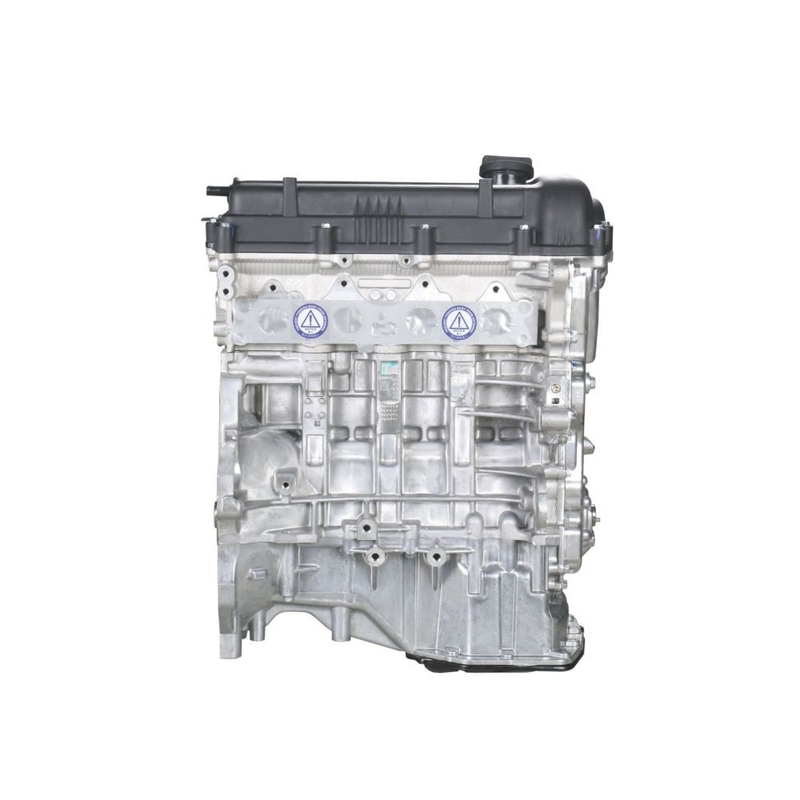

Stable Operation Long Block Hyundai G4FA Engine Heat Resistant for i20
New Motor Engine Assembly Hyundai 1.4L 16V G4FA Long Block Motor Engine for Hyundai i20 i30 Accent & Kia Ceed Rio 3
The 1.4-liter Hyundai G4FA engine has been produced at the company’s Chinese plant since 2006 and is primarily known as the base power unit of such models as Ceed, i20, i30 and Accent.
In 2006, a 1.4-liter unit debuted on the new Ceed model for the European market. By design, this is a typical motor with an aluminum block, an open cooling jacket, an aluminum 16-valve cylinder head without hydraulic lifters and a timing chain with a hydraulic tensioner. Fuel injection is distributed here, and there is a phase regulator on the intake camshaft. This unit is equipped with a plastic intake manifold without a geometry change system.
Gamma family: G4FA, G4FL, G4FS, G4FC, G4FD, G4FG, G4FJ, G4FM, G4FP, G4FT, G4FU.
Engine Specifications:
| Displacement, cc |
1396 |
| Fuel system |
distributed injection |
| Power output, hp |
99 – 109 |
| Torque output, Nm |
135 – 137 |
| Cylinder block |
aluminum R4 |
| Block head |
aluminum 16v |
| Cylinder bore, mm |
77 |
| Piston stroke, mm |
75 |
| Compression ratio |
10.5 |
| Hydraulic lifters |
no |
| Timing drive |
chain |
| Phase regulator |
yes |
| Turbocharging |
no |
| Recommended engine oil |
0W-30, 5W-30 |
| Engine oil capacity, liter |
3.7 |
| Fuel type |
petrol |
| Euro standards |
EURO 4/5 |
Fuel consumption, L/100 km (for Hyundai Solaris 2012)
— city
— highway
— combined |
7.6
4.9
5.9 |
| Engine lifespan, km |
~300 000 |
|
Product Features:
| Part Name: |
Long block engine |
| Engine: |
G4FA |
| Material: |
Cast Iron + Aluminum Alloy |
| Application: |
For Hyundai i20 i30 Accent & Kia Ceed Rio 3 |
| MOQ: |
1 pc |
| Condition: |
New |
| Purpose: |
for replace/repair |
| Warranty: |
12 Months |
| Packing: |
Wooden Box Package |
| Advantages: |
One Stop Shopping Center For Engine Parts |
| Payment: |
T/T,L/C,Western Union; |
| Delivery: |
3-15 days; |
Application:
- Hyundai Accent 4 (RB) in 2010 – 2018;
- Hyundai i20 1 (PB) in 2008 – 2014;
- Hyundai ix20 1 (JC) in 2010 – 2019;
- Hyundai i30 1 (FD) in 2007 – 2012; i30 2 (GD) in 2011 – 2015;
- Hyundai Solaris 1 (RB) in 2010 – 2017;
- Kia Ceed 1 (ED) in 2006 – 2013; Ceed 2 (JD) in 2012 – 2015;
- Kia ProCeed 1 (ED) in 2007 – 2010;
- Kia Rio 3 (QB) in 2011 – 2017; Rio 3 (UB) in 2011 – 2017;
- Kia Venga 1 (YN) in 2009 – 2019.
Factory:
Transportation:
FAQ:
Q1: Can you produce per the samples?
A: Yes, we can produce as per your samples or technical drawings. We have very professional technical team , We can build the molds and fixtures.
Q2: What is your terms of payment?
A: For stock items , we recommend full payment for fast shipping. If the items need to be produced , T/T 30% as deposit, and rest before delivery.
We'll show you the photos of the products and packages for checking before you pay the balance.
Q3: What is your package?
A: Depends on items , for light heavy goods, We usually pack our goods in neutral brown cartons , if heavy goods or big quantity ,we pack it by pallet or wooden box. Also we can customized package for your band as per your requirements.
Q4: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q5: What is your delivery time?
A: In general, if we have stock ,the goods can be delivered 1-3 days after your payment. If no stock, the specific delivery time will be depended on your order quantity.
Q6: Can you accept sample order?
A: Yes sure. We can supply the sample if we have the parts in stock.
Q7: Do you test all your items before delivery?
A: Yes, we have 100% test before delivery,we have strictly quality control policy.
Q8: Which shipment you can supply?
A: By sea, by air ,by train or by express (DHL, FEDEX ,TNT,UPS,EMS etc.)
